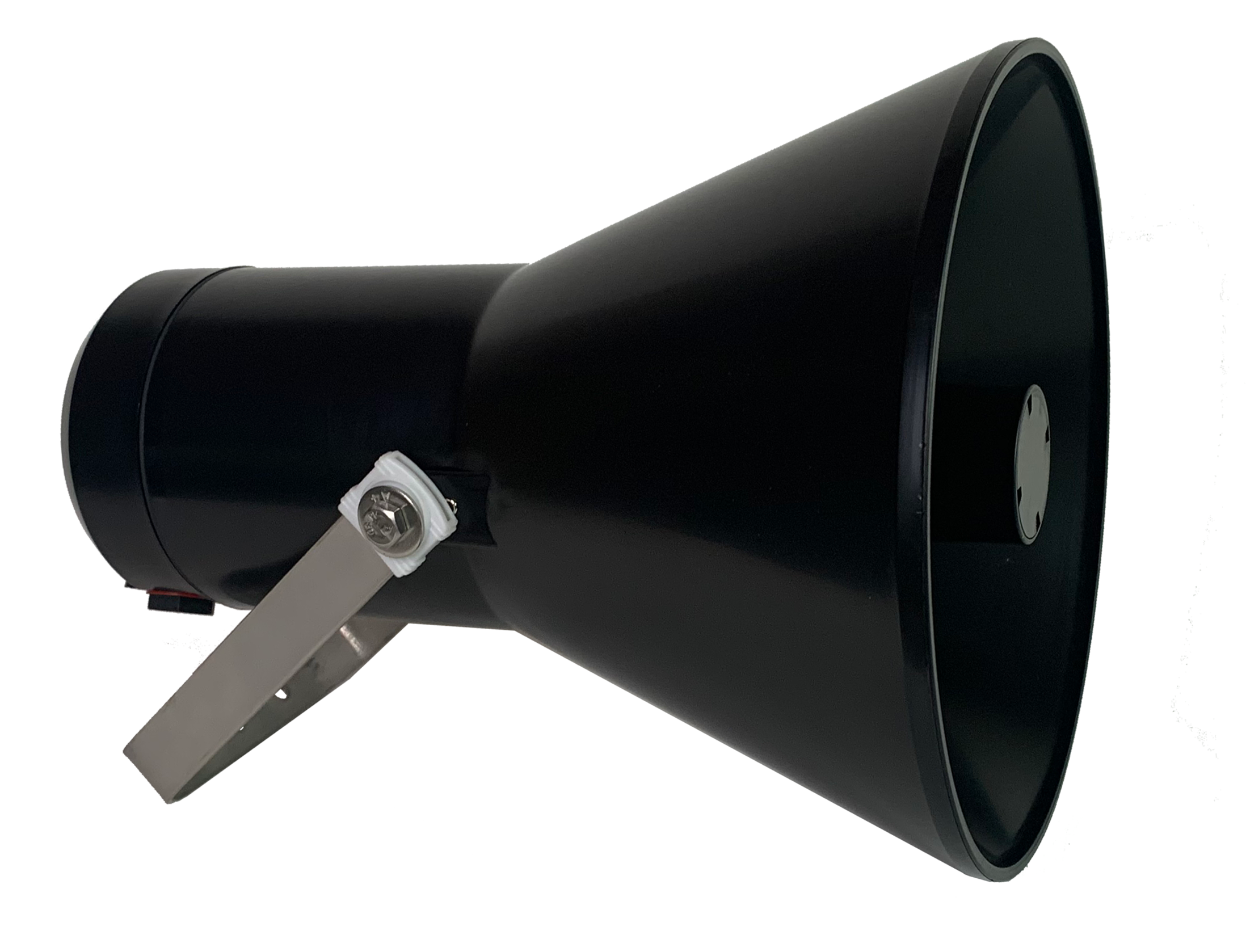

DSP-25EExmN(T)

The DSP-25EExmN(T) is the original Ex plastic horn speaker. The model can be ordered with different transformers for more choices of tappings and power ratings. It has extensive certification, dual M20 entries in the back lid for easy cable mounting and supports loop in loop out.
Conformité Européenne
IP66
ATEX Certified
CCC Certified
IECEX Certified
INMETRO Certified

Similar products

Explosion Proof // Ex Horns

DSP-15EExmNT

This versatile 25W Ex plastic horn speaker is light in weight and features a spacious connection chamber of protection type ‘e’. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world. The model can be ordered with different transformers for more choices of power tappings and power ratings.

DSP-15EExmNT-MED

This versatile 25W Ex plastic horn speaker is light in weight and features a spacious connection chamber of protection type ‘e’. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world. The model can be ordered with different transformers for more choices of power tappings and power ratings.

HS-15 EExmNMF(T)

A fully maintenance free Ex aluminium horn loudspeaker. The unit is supplied with a permanently encapsulated cable according to the client’s specification. The product is anodized and powder coated, for excellent corrosion resistance, and can be delivered in different colors.

DSP-15EExmNLT-MED

The long flare variant of the DSP-15EExmN(T) is an excellent choice when requiring a higher sound pressure level and increased directivity. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world.

DSP-15EExmN(T)MF

This maintenance free variant of the DSP-15EExmN(T) is delivered with a permanently encapsulated cable of optional length and type. Like the standard, it can be delivered with different transformers and tappings, and has extensive certification and multiple options for variation. It can also be delivered with a long flare.

DSP-15EExmNLT

The long flare variant of the DSP-15EExmN(T) is an excellent choice when requiring a higher sound pressure level and increased directivity. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world.
Specifications
Material/Color Anti-static PA / Black
Mounting Bracket
Termination E-chamber / Screw terminal
Weight 4.0 kg
IP Rating IP66
Min/Max amb temp -50 °C / 55 °C
Rated power 25 W
SPL 1W/1m: 108 db
SPL Rated Power 120 db
Effective freq. Range 375 - 7500 Hz
Dispersion (-6dB) 1kHz / 4kHz 98° / 29°
Options Impedance / Label / Transformers / moulded permanent cable
DSP-25EExmN(T) frequency graph

Documentation  |  DSP-25EExmN(T)

Certificates
Product Data
