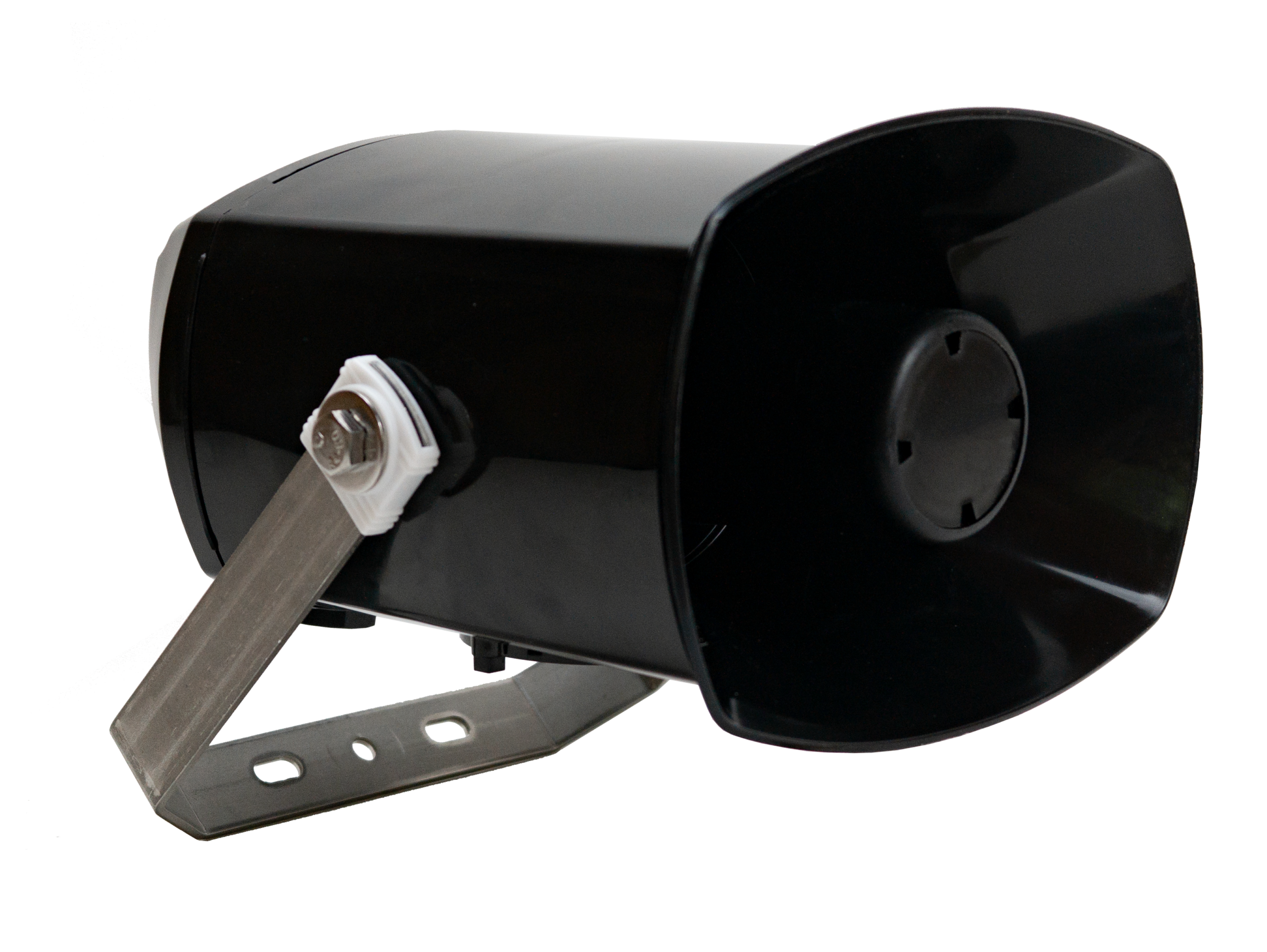

DSP-15EExmN(T)MF

This maintenance free variant of the DSP-15EExmN(T) is delivered with a permanently encapsulated cable of optional length and type. Like the standard, it can be delivered with different transformers and tappings, and has extensive certification and multiple options for variation. It can also be delivered with a long flare.
Conformité Européenne
IP66
IP67
ATEX Certified
BV Certified
CCC Certified
IECEX Certified
INMETRO Certified
KOSHA Certified

Similar products

Explosion Proof // Ex Horns

DSP-15EExmNLT

The long flare variant of the DSP-15EExmN(T) is an excellent choice when requiring a higher sound pressure level and increased directivity. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world.

DSP-15EExmNLT-MED

The long flare variant of the DSP-15EExmN(T) is an excellent choice when requiring a higher sound pressure level and increased directivity. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world.

DSP-15EExmN(T) 8W

The 8W version of the DSP-15EExmN(T) comes with a transformer that can be tapped to 8, 4, 2, 1.5, 0.7 or 0.4 W. This makes it a versatile model, ideal for spaces where a lower power input and sound pressure level is preferred. Like the standard version, it has extensive certification and multiple options for variation.

DSP-25EExmN(T)

The DSP-25EExmN(T) is the original Ex plastic horn speaker. The model can be ordered with different transformers for more choices of tappings and power ratings. It has extensive certification, dual M20 entries in the back lid for easy cable mounting and supports loop in loop out.

DSP-15EExmNT

This versatile 25W Ex plastic horn speaker is light in weight and features a spacious connection chamber of protection type ‘e’. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world. The model can be ordered with different transformers for more choices of power tappings and power ratings.

DSP-15EExmNT-MED

This versatile 25W Ex plastic horn speaker is light in weight and features a spacious connection chamber of protection type ‘e’. It has dual M20 entries in the back lid for easy cable mounting and supports loop in loop out as standard. The model has extensive certification qualifying it for use in nearly all corners of the world. The model can be ordered with different transformers for more choices of power tappings and power ratings.
Specifications
Material/Color Anti-static PA / Black
Mounting Bracket / Swivel bracket
Termination Cable
Weight 2.6 kg
IP Rating IP66 / IP67
Min/Max amb temp -50 °C / 60 °C
Rated power 25 W
SPL 1W/1m: 106 db
SPL Rated Power 118 db
Effective freq. Range 380 - 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 120° / 37°
Options Cables / Impedance / Label / Transformers
DSP-15EExmN(T)MF frequency graph

Documentation  |  DSP-15EExmN(T)MF

Certificates
Product Data
